Why Choose EDS9800

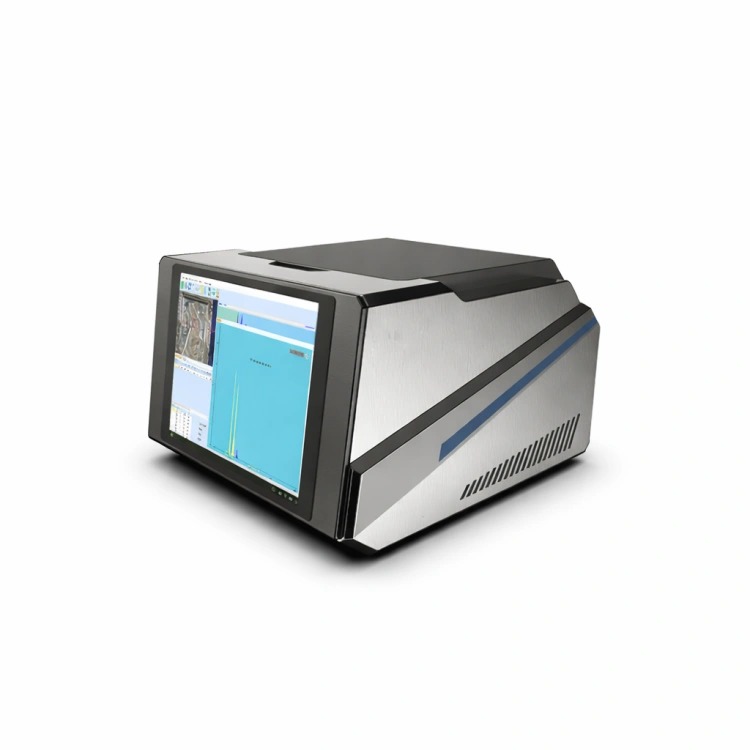

The EDS9800 is a compact and high-accuracy XRF metal analyzer built for precious metal testing. It helps users identify the composition of gold, silver, platinum, and other metals quickly without damaging the sample.
With a fast test speed, stable performance, and user-friendly software, it is suitable for daily use in jewelry stores, pawn shops, precious metal recycling, and quality inspection environments.
Product Advantages
High accuracy
Delivers precise results for high-value precious metal testing.
Fast test speed
Complete analysis in as little as 5 seconds.
Non-destructive testing
Check metal composition without cutting or damaging the item.
Wide element range
Measures 82 elements from sodium (Na) to uranium (U).
Professional analysis software
Supports both qualitative and quantitative analysis.
Compact desktop design
Easy to place in retail shops, offices, labs, and testing counters.
Technical Specifications
| Item | Specification |
|---|---|
| Model | EDS9800 |
| Accuracy | 0.03% (Au ≥96%) |
| Test time | 5–60 sec |
| Analysis range | ppm to 99.99% |
| Sample form | Solid, powder, liquid |
| Detectable elements | 82 elements from Na to U |
| Simultaneous analysis | Up to 26 elements |
| Detector type | Si-pin |
| Analysis software | Qualitative and quantitative analysis software |
| High voltage power supply | 0–50KV |
| Tube voltage | 5KV–50KV |
| Filters | Selectable customized switches |
| Multichannel analyzer | Digital multichannel analyzer |
| Resolution | 145 ± 5 eV |
| Camera | HD camera |
| Sample chamber size | 310 × 270 × 90 mm |
| Machine size | 480 × 440 × 368 mm |
| Weight | 36 kg |
| Power requirements | AC 220V ±10V, or AC 110V ±10V, 50/60 Hz |
| Working temperature | 5°C–38°C (air-conditioned room recommended) |
| Relative humidity | 15%–90% |
