Product Application

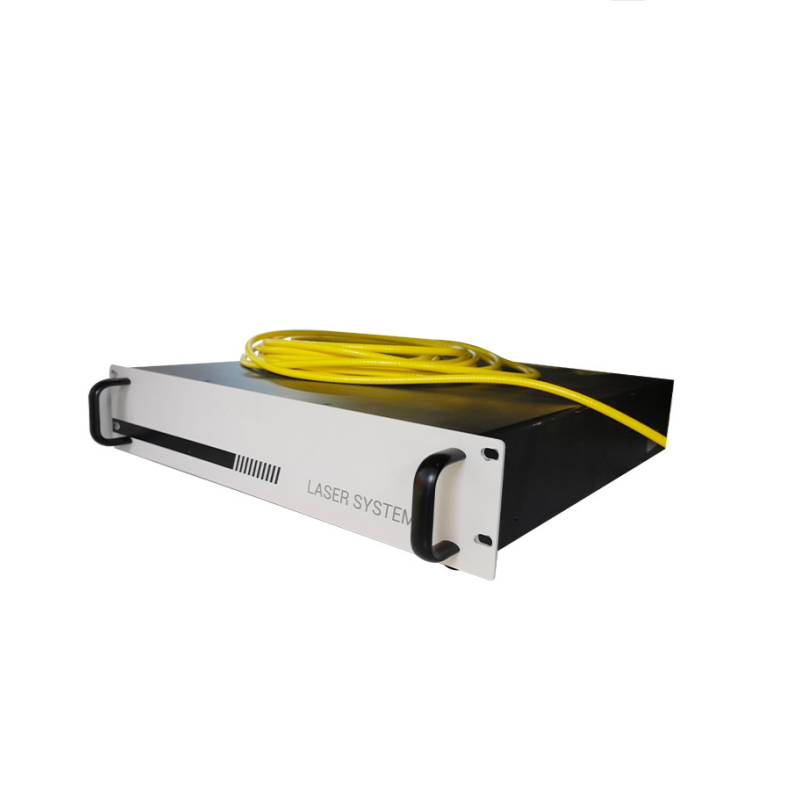

The BWT laser source beam combining fiber laser boasts exceptional beam quality, enabling precise processing capabilities. It offers a variety of continuous and regulated pulse modes, allowing users to select the most suitable option and effectively reducing the heat-affected zone during processing. With its reliable performance and fully modularized fiber design, all photoelectric devices are securely enclosed within a sturdy housing, ensuring durability even in demanding industrial conditions. This laser technology finds wide application in fields such as precise processing, 3D printing, sheet metal processing, and Lithium-ion battery processing. It is capable of processing diverse materials, including various steels, aluminum and nickel-based alloys, titanium alloys, and alumina ceramics.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Features
- Simple control interface.
- Excellent system stability.
- Fiber BWT laser source with good beam quality, suitable for precision machining.
- There are two modes of continuous and modulated pulse to optimize the machining quality.
Product Parameters
| Power | 500W |
| Wavelength | 1080±10 nm |
| Output fiber core diameter | 14μm/20μm/50μm |
| Cable Length | 12 m or Customized |
| Beam Delivery | QBH or Customized |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| (25℃)Power Stability | ＜±1.5% (2h) |
| Power Adjustment Scope | 10%-100% |
| Max. Modulation Frequency | 5kHz |
| Weight | ＜30Kg |
| Outline Feature | 100mm*482mm*347mm |
| Voltage | 220±20V,AC,PE,50/60Hz |
| Power Consumption | 1.5kW |
| Control Interface | RS232 |
| Mini. Water Cooling Capacity | 1 kW |
| Temperature Settings | 25℃（Laser Module），30℃（QBH） |
| Cooling Tubes Size (External) | Φ12mm |
| Cooling Water Flux | >5L/min |
| QBH Cooling Water Flux | 1.5~2.0L/min |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
Q1: Do you provide after-sales service?
A1: The fiber laser source has one year warranty and provides door-to-door service.
Q2: How long is the delivery time?
A2: Laser sources are usually sent out within two days of payment.
Q3: I don’t know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A3: We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
