Product Application

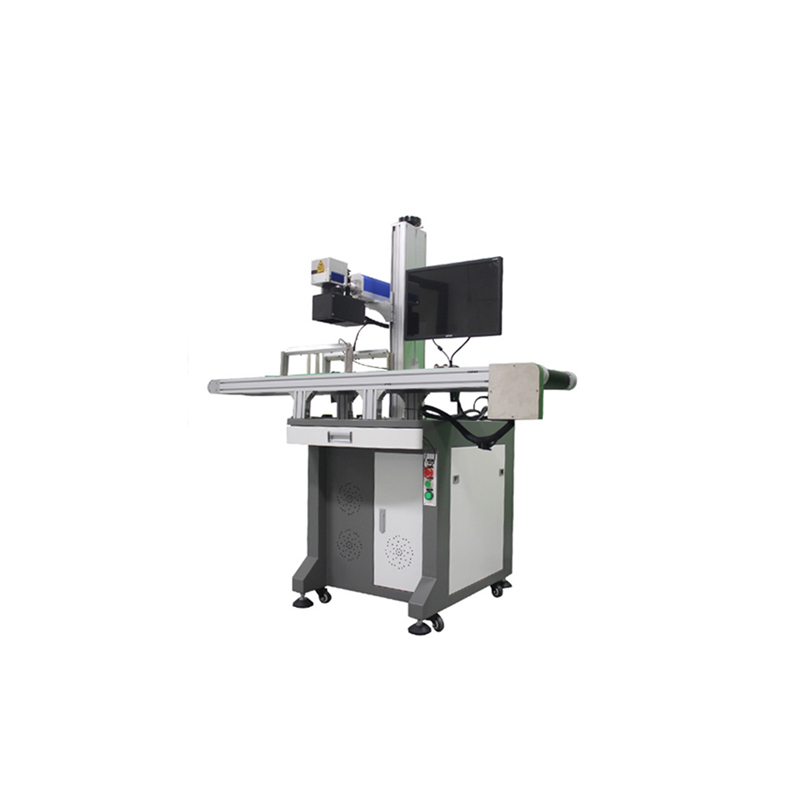

The RL-V fiber optic laser engraving machine is a visual specialized laser marking machine. Equipped with a high-performance CCD image sensor, it automatically captures and displays the marking position and can be adjusted at any time to meet your high standard marking needs.Specialized in metal marking such as stainless steel, aluminum, carbon steel, magnesium and titanium.Provide a complete range of marking services at any angle and position, regardless of the shape of the material. Positioning accuracy is up to 0.002mm. The specially designed MACS machine software system is feature-rich and easy to operate. Precision synchronized conveyor belt can work with assembly line to save manpower and increase production.
Product Features
- Industrial laser, high speed digital vibrator, stable performance;
- High precision visual positioning system, accurate position,corresponding speed, no fixture;
- Any number of products, any Angle, can be accurately marked tothe designated position;
- Self-developed MACS machine vision software, simple operation,rich functions, easy maintenance;
- Special precision synchronous conveyor belt, supporting stepping mode and photoinductive mode, can be switched according to demand;
- It can be matched with assembly line or other automatic loading and unloadingmechanism to save manpower and realize automatic marking without humans.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Display
Product Parameters
Output Power | 20W / 30W / 50W / 70W / 100W |
Laser wavelength | 1064nm |
Beam quality M2 | 1.4 |
Pulse repetition frequency | 20-80 kHz |
Output power stability | 5% |
RL-V fiber optic laser engraving machine design life | About 100,000 working hours (not service life) |
Directive projection | Red light 655nm output 2.0mW |
Marking range | 200*200 mm |
Recognition angle | 360° |
Engraving depth | ≤1mm (depending on power and time) |
Engraving speed | ≤10000mm/s |
Repeatability | ±0.002 |
Minimum marker line width | 0. 1mm |
Minimum character height | 0.15mm |
Dimensions | Marking machine: 600X800X1400mm Conveyor belt: 1230X260X160 mm |
Total Weight | About 85KG |
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
Q: If I want to become your distributor, can I get a discounted price?
A: Absolutely, we offer more favorable pricing for our distributors.
Q: Does the handheld laser marker pose any harm to the human body?
A: Our handheld laser marker is completely safe for the human body and also environmentally friendly.
Q:What is the lifespan of a RL-V fiber optic laser engraving machine?
A:In theory, the lifespan of our RL-V fiber optic laser engraving machine can reach up to 100,000 hours.
