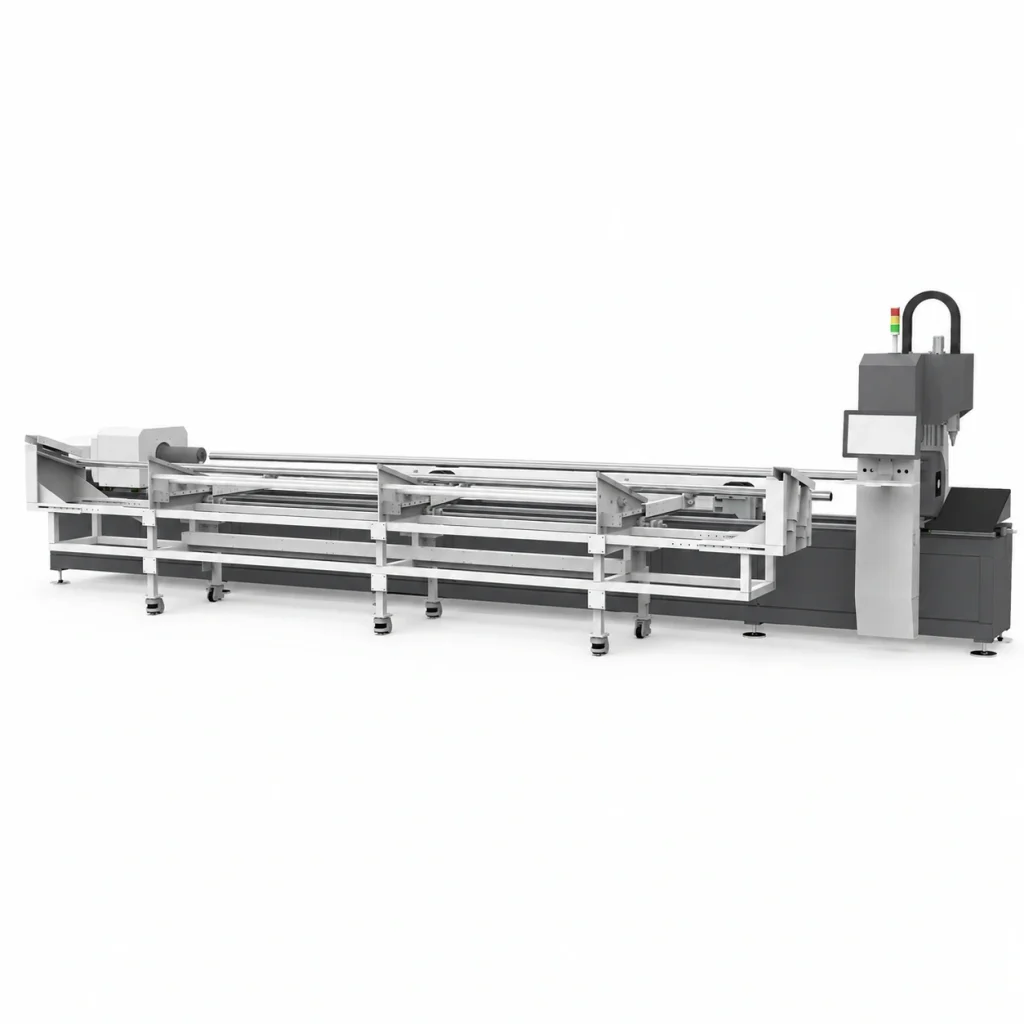

Small Tube Laser Cutting Machine for Metal Pipe Processing
This small tube fiber laser cutting machine is designed for fast, clean, and stable cutting of small and medium metal tubes. It is suitable for round tubes, square tubes, rectangular tubes, and common metal profiles used in daily industrial production.
Built for manufacturers who need efficient tube cutting without using a large heavy-duty tube laser system, this machine is a practical solution for furniture, railings, shelves, hardware, bathroom accessories, and automotive tube parts.
Made for Small & Medium Tubes
A practical choice for factories processing common metal tubes used in furniture, racks, guardrails, frames, and light industrial parts.
Round, Square & Profile Cutting
Supports different tube shapes including round tubes, square tubes, rectangular tubes, and common profiles for flexible production needs.
Built for Batch Production
Stable clamping, fiber laser cutting, and reliable motion control help improve cutting consistency for daily tube processing work.
Cut Round, Square and Profile Metal Tubes
This small tube fiber laser cutting machine is built for common metal tube processing, including round tubes, square tubes, rectangular tubes, and standard profile tubes used in furniture, railings, racks, frames, and hardware parts.
Round Tubes
Suitable for stainless steel tubes, carbon steel pipes, aluminum tubes, and other common round metal tube cutting jobs.
Square Tubes
Designed for square tube cutting in metal furniture, guardrails, shelves, display racks, and structural frame production.
Rectangular & Profile Tubes
Supports common rectangular tubes and profile tubes. Send your tube size, wall thickness, and drawings for cutting confirmation.
Complete Configuration for Stable Small Tube Cutting
This small tube fiber laser cutting machine is equipped with reliable laser, control, cooling, transmission, clamping, and pneumatic systems for daily metal tube processing. The main components below help support stable cutting quality, repeatable accuracy, and efficient batch production.
Max Laser Source
Stable fiber laser source for cutting stainless steel, carbon steel, aluminum, and other metal tubes with clean cutting edges.
Weihong Control System
A practical laser cutting control system for motion control, cutting process settings, and stable tube cutting production.
Weihong Laser Cutting Head
Compact cutting head design helps reduce interference during tube cutting and supports smooth cutting on different tube shapes.
Hanli Water Chiller
The cooling system helps control the working temperature of the laser source and cutting head during long working hours.
Standard Components Included
In addition to the main laser and control components, the machine also includes clamping, transmission, pneumatic, lubrication, and operation accessories required for stable tube cutting work.
Pneumatic Clamping Chuck
Helps hold round tubes, square tubes, and common profiles firmly during cutting.
Pneumatic Steady Rest
Supports tube stability during feeding, rotation, and long tube cutting.
Weihong Servo Motors
X, Y, Z, and U axis servo motors support stable motion and repeatable cutting accuracy.
Precision Gear Rack
Taiwan Jingte or equivalent gear rack supports high-speed movement and stable transmission.
High Precision Linear Guides
Taiwan AIK or equivalent linear guides help maintain smooth and accurate machine movement.
Z-Axis Precision Ball Screw
Supports stable vertical movement of the cutting head during tube cutting.
KOFON Gearboxes
High precision gearbox design helps improve transmission stability and wear resistance.
AirTac / SMC Pneumatic Components
Reliable pneumatic components support clamping, steady rest movement, and air control.
Receiving Table
1500–3000mm receiving table supports finished tube parts after cutting.
Wireless Remote Control
Allows easier machine operation, adjustment, and daily production control.
Automatic Lubrication System
Helps reduce manual maintenance and protect key transmission parts during long-term use.
Chiller Cooling System
Provides cooling for the laser source and laser cutting head during continuous operation.
Technical Data for Small Tube Processing
The machine is designed for small and medium metal tube cutting, with fast movement, stable accuracy, pneumatic clamping, and short tube remainder for efficient production.
| Laser Power Options | 1.5kW / 2kW / 3kW / 6kW |
|---|---|
| Max Tube Length | 6500mm |
| Round Tube Diameter | Ø10–120mm |
| Square Tube Size | 10×10–120×120mm |
| Max Rotation Speed | 200 rpm |
| Max Travel Speed | 120 m/min |
| Acceleration | 1.6G |
| Positioning Accuracy | ±0.05mm |
| Repositioning Accuracy | ±0.02mm |
| Chuck Drive | Pneumatic |
| Steady Rest Drive | Pneumatic |
| Minimum Tube Remainder | 60mm |
| Receiving Table Length | 1500–3000mm |
| Machine Weight | Main body approx. 2000kg |
| Total Power | 17kW |
| Voltage | 380V / 50Hz |
| Operating Temperature | 5–35°C |
Applications of Small Tube Fiber Laser Cutting Machine
This small tube fiber laser cutting machine is suitable for common metal tube parts used in furniture, railings, racks, vehicles, bathroom hardware, and light industrial production.
Metal Furniture
Used for cutting metal chair frames, table frames, furniture supports, and decorative tube parts with clean edges and repeatable accuracy.
Railings & Guardrails
Suitable for handrails, guardrails, balcony railings, protective fences, and anti-theft net tube processing in building decoration projects.
Shelves & Display Racks
Helps produce storage shelves, supermarket racks, display stands, warehouse frames, and other metal tube rack structures.
Automotive & Motorcycle Parts
Designed for tube components used in automobiles, motorcycles, electric vehicles, bicycles, frames, brackets, and light vehicle parts.
Bathroom & Hardware Accessories
Suitable for bathroom hardware, towel racks, stainless steel accessories, handles, brackets, and small metal pipe fittings.
Fitness & Sports Equipment
Used for cutting tube parts in fitness equipment, sports equipment,h3>Fitness & Sports Equipment
Used for cutting tube parts in fitness equipment, sports equipment, exercise frames, support structures, and related metal products.
Built for Fast and Stable Small Tube Cutting
This small tube fiber laser cutting machine is designed for manufacturers who need efficient processing of small and medium metal tubes. It combines a practical tube size range, short tube remainder, stable pneumatic clamping, and reliable motion accuracy for daily production.
Designed for 10–120mm Tubes
Suitable for common small and medium metal tubes, including round tubes, square tubes, rectangular tubes, and standard profile tubes used in furniture, railings, racks, and hardware parts.
Short Tube Remainder from 60mm
The short tail design helps reduce material waste during batch tube cutting, especially for factories processing repeated tube parts and small metal components.
High-Speed Motion with 1.6G Acceleration
Fast movement and high acceleration help improve cutting efficiency for daily production, making the machine suitable for continuous tube processing work.
Pneumatic Chuck and Steady Rest
The pneumatic clamping system helps hold tubes firmly during cutting and rotation, supporting stable cutting performance for round, square, and profile tubes.
Up to 6500mm Tube Length
The machine supports long tube processing up to 6500mm, which fits many standard metal tube production needs in furniture, shelves, guardrails, and vehicle parts.
Stable Cutting Accuracy
With stable motion control and precision transmission components, the machine supports accurate and repeatable cutting for daily metal pipe processing.
How to Choose the Right Laser Power
Different tube materials, wall thicknesses, cutting speeds, and production volumes require different laser power levels. Share your tube size, material, wall thickness, and drawings, and our team will recommend the suitable configuration for your production.
For Light Tube Processing
Suitable for customers cutting small and medium metal tubes with common wall thicknesses. A practical choice for furniture, hardware, light frames, and daily tube parts.
For General Production
A balanced option for workshops that need better cutting efficiency on regular metal tubes while keeping the machine practical for daily batch production.
For Faster Cutting Speed
Recommended when customers need higher processing speed, better production capacity, or more stable cutting performance for larger daily workloads.
For Higher Output Needs
Suitable for users who need stronger cutting capacity, faster production cycles, or more demanding metal tube processing requirements.
Not sure which power to choose?
Please send your tube material, tube diameter or size, wall thickness, tube length, cutting drawings, and expected production volume. We will help you choose the right laser power and machine configuration.
Common Tube Parts This Machine Can Process
This small tube fiber laser cutting machine is suitable for cutting, slotting, hole cutting, and profile processing on common metal tubes. It helps manufacturers produce tube parts for furniture, railings, racks, vehicle parts, hardware, and light industrial products.
Round Tube Cutting
Suitable for cutting round metal tubes used in frames, supports, handrails, fitness equipment, and general pipe structures.
Square Tube Cutting
Processes square tubes for shelves, display racks, guardrails, furniture frames, and metal structure parts.
Rectangular Tube Parts
Supports rectangular tube cutting for industrial frames, equipment structures, brackets, and light fabrication parts.
Hole & Slot Cutting
Can be used for tube hole cutting, slot cutting, opening, and connection positions based on customer drawings.
Furniture & Rack Components
Helps produce tube components for metal chairs, tables, storage shelves, supermarket racks, and commercial display frames.
Vehicle & Hardware Tube Parts
Suitable for tube parts used in bicycles, electric vehicles, motorcycles, bathroom hardware, brackets, and small metal fittings.
Send Your Tube Drawing for Confirmation
To confirm the cutting result and machine configuration, please send your tube material, tube size, wall thickness, tube length, cutting drawings, and expected production volume.
Small Tube Fiber Laser Cutting Machine FAQs
Find answers to common questions about tube size range, materials, laser power selection, quotation requirements, and after-sales support.
What tube sizes can this small tube fiber laser cutting machine cut?
This machine is designed for small and medium metal tubes. It supports round tubes from Ø10–120mm and square tubes from 10×10mm to 120×120mm. The standard maximum tube length is up to 6500mm.
Can this machine cut both round and square tubes?
Yes. It can process round tubes, square tubes, rectangular tubes, and common metal profile tubes. For special tube shapes or complex cutting requirements, please send us your tube size and drawings for confirmation.
What materials can this tube laser cutting machine cut?
It is mainly used for metal tube cutting, including stainless steel, carbon steel, aluminum, and other common metal tubes. The suitable laser power depends on the material, wall thickness, cutting speed, and production requirements.
How do I choose between 1.5kW, 2kW, 3kW, and 6kW?
The right laser power depends on your tube material, wall thickness, tube diameter, and expected production speed. 1.5kW and 2kW are suitable for common light tube processing, while 3kW and 6kW are better for customers who need higher cutting efficiency or stronger cutting capacity.
What information should I provide before getting a quote?
Please send your tube material, tube diameter or tube size, wall thickness, tube length, cutting drawings, and expected production volume. This helps us recommend the right laser power, machine configuration, and quotation.
What warranty do you provide for this machine?
The standard warranty is 1 year for the machine and 2 years for the laser source. Consumable parts are not included in the standard warranty. We can also provide technical support for installation, operation, and daily maintenance.
