Metal Fiber Laser Cutting Machine for Sheet Metal Processing
Model:
Riselaser RL-3015
Laser power:
3000W / 6000W / 12000W
Working range:
1500mm × 3000mm
Application:
Specially designed for high-speed and high-precision metal cutting. Suitable for cutting carbon steel, stainless steel, aluminum, brass, copper, and other metal sheets. Ideal for sheet metal workshops, machinery manufacturing, hardware production, kitchenware, automotive parts, electrical cabinets, and customized metal fabrication.
Machine Video
Machine Features
Built for efficient and precise metal fabrication, this machine offers strong cutting performance, stable operation, and flexible power choices for different production needs.
High Cutting Speed
Supports efficient processing for metal sheet production.
High Precision
Provides accurate cutting results and clean edges.
Stable Performance
Designed for reliable operation in continuous working conditions.
Multiple Power Options
3000W, 6000W, and 12000W available.
Wide Metal Compatibility
Suitable for carbon steel, stainless steel, aluminum, brass, and copper.
Ideal for Industrial Use
Widely used in sheet metal workshops, machinery manufacturing, hardware, and customized metal fabrication.
Technical Parameters
| Parameter | Data |
|---|---|
| Model | Riselaser RL-3015 |
| Working Area | 1500 × 3000 mm |
| Laser Type | Fiber laser, 1080 nm |
| Laser Power | 3000W / 6000W / 12000W |
| Fiber Laser Source | Raycus / Maxphotonics / BWT / JPT |
| Min Line Width | 0.1 mm |
| Positioning Accuracy | ±0.01 mm |
| Max. Cutting Speed | 60 m/min |
| Maximum Speed | 180 m/min |
| Maximum Acceleration | 2G |
| Transmission Type | Dual gear rack transmission |
| Driving System | Servo motors |
| Cutting Thickness | Depending on laser power and material |
| Assisting Gas | Compressed air, oxygen, and nitrogen |
| Cooling Mode | Industrial circulation water chiller |
| Working Voltage | 220V / 380V, voltage regulator optional to adapt your voltage |
Factory Show
Certificates and Quality Assurance
Our machines are manufactured under strict quality control standards. Relevant certifications and quality documents are available to support international business and customer requirements.

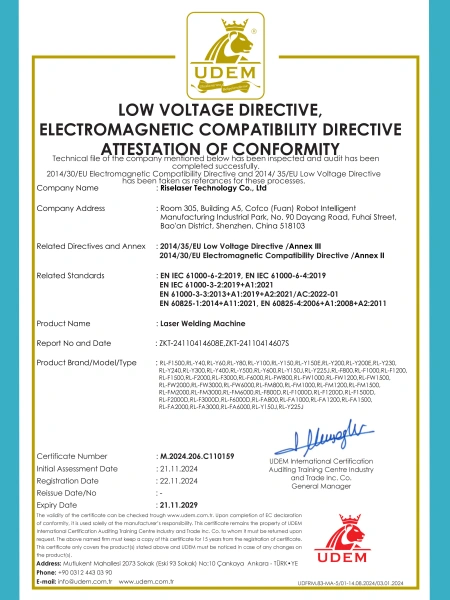

CE Certified Safety
Fully compliant with EU health, safety, and environmental protection standards. Ensures the machine is safe to operate and ready for the European market.

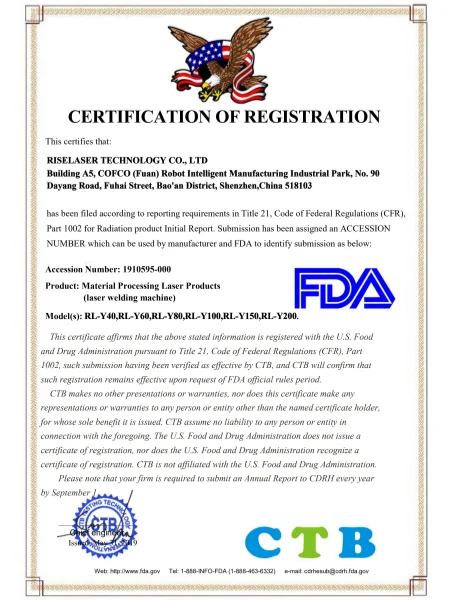

FDA Accession Number
Officially registered with the U.S. FDA (CDRH). We provide a valid Accession Number for smooth customs clearance and legal usage in the United States.

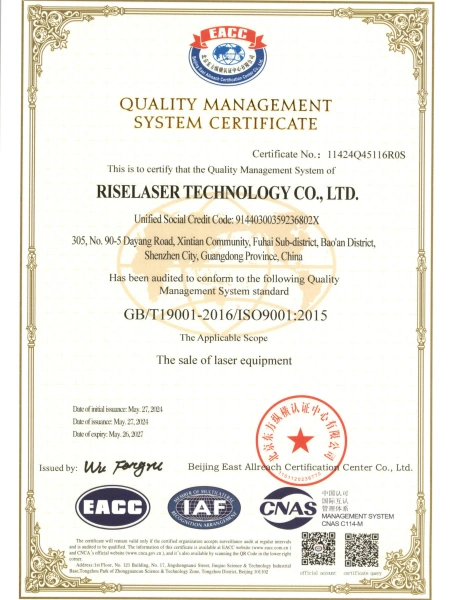

ISO 9001 Quality System
Our manufacturing process is certified by ISO 9001 standards. Every machine undergoes strict quality control and testing before shipment to ensure reliability.
FAQs
1. What Materials Can This Fiber Laser Cutting Machine Cut?
This machine is designed for metal cutting only. It is suitable for cutting carbon steel, stainless steel, aluminum, brass, copper, galvanized sheet, and other metal sheets.
2. What Laser Power Options Are Available?
The RL-3015 is available in 3000W, 6000W, and 12000W configurations. Different power levels are suitable for different materials, thicknesses, and production requirements.
3. How Do I Choose the Right Power for My Application?
The right power depends on your material type, material thickness, cutting speed requirements, and desired edge quality. Our team can recommend the most suitable configuration based on your actual cutting needs.
4. What Is the Working Area of This Machine?
The standard working area of the RL-3015 is 1500 × 3000 mm, which is suitable for common metal sheet processing applications.
5. What Industries Is This Machine Suitable For?
It is widely used in sheet metal fabrication, machinery manufacturing, hardware production, kitchenware, electrical cabinets, automotive parts, advertising signs, and customized metal fabrication.
