Product Application

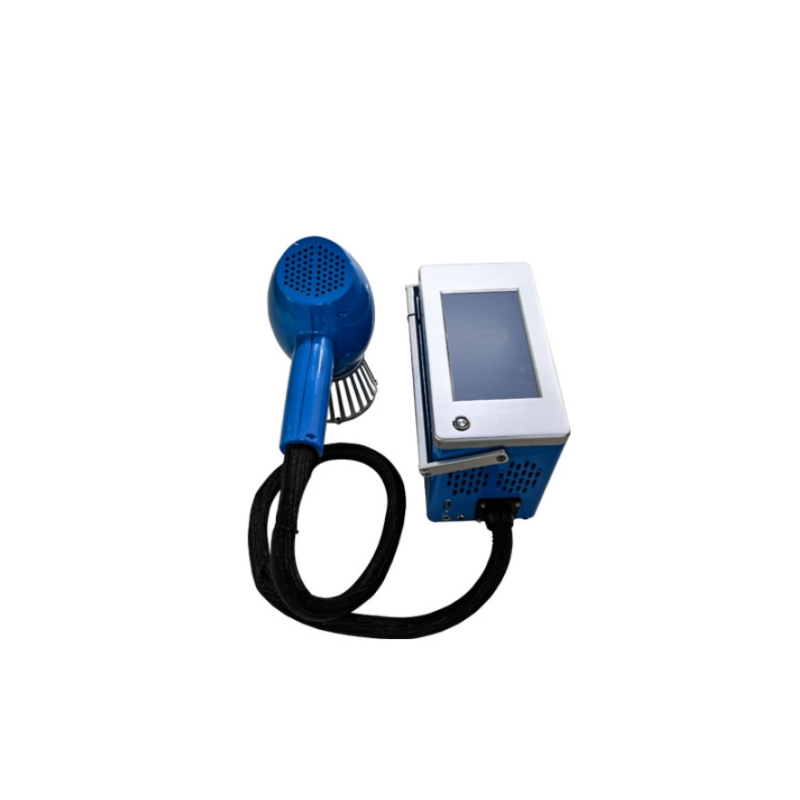

RL-Q8 handheld fiber laser engraving machine is a special model specially developed by Riselaser for simple, compact, flexible, and convenient equipment requirements.It can marking on mobile phones buttons, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products,sanity ware,tools,accessories,knifes,medical device industry,jewelry, glass and clocks,auto parts,luggage buckle,cooking utensils,stainless steel products and other industries, etc.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Machine Configuration
Fixed head
Use with the marking head to fix the marking position
Marking head
Its light weight and versatility are ideal for marking large, bulky and difficult-to-handle workpieces
Operation interface
Working status monitoring product function adjustment panel
Field lens
High focus,high stability,high precision, low temperature,reduced delay, automatic calibration.
Exhaust port
Effectively cool the machine and effectively dissipate heat to improve working time and efficiency.
Handle
Portable design makes it easy to move the product
Product Structure
Product Parameters
| Model | RL-20Q8 |
| Outputpower | 20W |
| Beam quality M² | ≤1.4 |
| Pulse repetition frequency | 27-60 kHz |
| Laser wavelength | 1064±5 |
| Output power stability | ＜3% |
| Marking area | 80mm |
| Engraving depth | ≤1mm(Depending on power and time) |
| Engraving speed | ≤10000mm/s |
| Repeatability | ±0.002 |
| Min mark line width | 0. 1mm |
| Minimum character height | 0.15mm |
| Cooling way | Built-in air cooling |
| System power supply | 500W / 100-240V / 50/60Hz |
| Weight | 6 KG |
| Dimension | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm |
Product Features
- Powerful and reliable, the weight of the whole machine is 6kg, and its marking head is only 1.25kg.
- Portable fiber laser engraving machine has an ergonomic grip that comfortable to hold and easy to operate.
- It use 24V lithium battery to achieve complete wireless, which can maintain work for 6-8 hours under normal use.
- Using MAX 20W fiber laser source, the spot quality is good, the output light power is stable, and it can be flexibly applied to metal materials and some non-metal materials.
- Increased power control design, the equipment can be charged during work, to achieve continuous work and improve processing efficiency.
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
Q1: Do you provide after-sales service?
A1:The mini portable fiber laser marking machine has one year warranty and provides door-to-door service.
Q2:How long is the delivery time?
A2:Ordinary machines will be delivered in 3-7 days, and customized machines will take 12-14 days.
Q3:Do you support customization?
A3:Yes, we will make customized service for you according to the different cutting materials and thickness.
Q4:I don’t know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A4:We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
