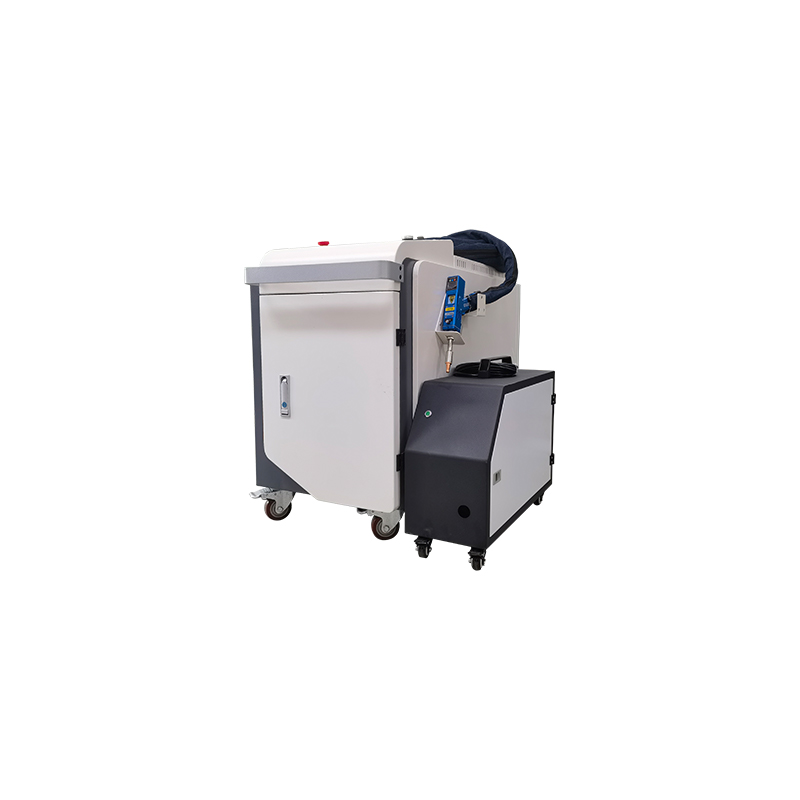

The Riselaser RL-F series (1500W/2000W/3000W) Handheld Fiber Laser Welder is a complete solution for metal fabrication. It solves the biggest problems you face in welding. Traditional welding is slow, messy, and hard to learn. Our system changes that with speed and precision. It’s also very easy to use. By focusing powerful fiber laser energy into a lightweight handheld device, you can make perfect welds every time. This tool helps your workshop work faster and earn more money.
Welding Capabilities: Materials and Thickness Guide
The power of RL-F series (1500W/2000W/3000W) Handheld Fiber Laser Welder allows it to create full-penetration, single-pass welds on a wide variety of metals. However, the maximum weldable thickness depends on both the machine’s power and the type of material being welded.
Metals like stainless and carbon steel absorb laser energy very efficiently, allowing for greater welding depths. More reflective metals, such as aluminum and copper, require more power to achieve the same penetration. This guide provides a clear reference for the capabilities of each model.
Maximum Welding Thickness (Single-Sided Weld)
The following table shows the recommended maximum thickness for achieving a strong, single-sided, full-penetration weld.
| Material | RL-F1500 (1500W) | RL-F2000 (2000W) | RL-F3000 (3000W) |
| Stainless Steel | up to 4mm | up to 5mm | up to 7mm |
| Carbon Steel | up to 4mm | up to 5mm | up to 7mm |
| Galvanized Steel | up to 3mm | up to 4mm | up to 6mm |
| Aluminum | up to 3mm | up to 4mm | up to 6mm |
| Brass / Copper | up to 1.5mm | up to 2.5mm | up to 4mm |
Product Advantage
Every feature of the RISELASER Handheld Fiber Laser Welder is built to solve the toughest problems in metal fabrication. We didn’t just improve old methods—we created a whole new way to work. You’ll enjoy faster workflows, better results, and a safer, simpler process.
Weld Up to 4x Faster
Cut your project times dramatically. The laser’s powerful, focused energy heats metal instantly. This lets you finish welding jobs much faster than with traditional TIG or MIG welders. You can complete more projects, shorten lead times, and increase profits.
Feature: The high-power fiber laser source delivers quick, concentrated heat. This speeds up melting and fusion, allowing faster travel speeds.
Flawless, Cleanup-Free Welds
Make strong, beautiful welds every time with little effort. The laser’s precision creates a very small heat-affected zone. This stops warping and discoloration. Your welds come out so clean that grinding or cleaning is barely needed.
Feature: Adjustable wobble control lets you set the laser beam’s swing width. This helps fill wider gaps and creates smooth, stacked-dime weld beads that look professional.
Master in Hours, Not Years
The RISELASER laser welder is easy for everyone to learn. Traditional welding takes years to master. With this machine, your team can produce great welds in just a few hours. This cuts training costs and makes your team more flexible.
Feature: The smart head has an integrated display. You can change power, wobble width, and settings right on the handheld gun. No need to walk back to the main unit. This keeps you focused and speeds up your work.
Feature: The anti-jam wire feeder delivers wire smoothly and reliably. It stops wire jams and bird-nesting, making it perfect for beginners and pros alike.
One Machine for Many Jobs and Lower Costs
Get more value with one versatile tool. The RISELASER isn’t just a welder—it’s a full fabrication system that saves you money on gear and supplies.
Feature: 3-in-1 functionality lets you weld, cut, and clean metal. Just change the nozzle and settings to switch between tasks.
Feature: The rotating protective lens can be used up to six times before needing replacement. This cuts your consumable costs and reduces downtime.
Machine Configuration
Unique Light Path Design
The protective lens holder can rotate six times. This means one protective lens can be used up to six times before needing replacement.
Individual Screen
The welding head has its own screen. This lets you adjust settings remotely, without going back to the main machine.
Unique Wire Feeding Design
Press and hold the enable button to feed the welding wire without moving it. Tap the enable button repeatedly to retract the wire smoothly.
Strong Wire Feeder
The wire feeder has powerful traction. It feeds wire smoothly for a very steady welding process. This makes it perfect for beginners. The welding results are excellent every time!
Product Parameters
| Model series | RL-F series | ||
| Model | RL-F1500 | RL-F2000 | RL-F3000 |
| Output power | 1500W | 2000W | 3000W |
| Laser wavelength | 1080nm | ||
| Operating mode | Continuous/Modulation | ||
| Swing width | 0-4mm | 0-5mm | 0-7mm |
| Welding gun interface type | QBH | ||
| Oscillation frequency | 1-30Hz | ||
| Cooling way | Water cooling | ||
| Operating voltage | 220V | ||
| Dimensions | 1120*800*880mm | 1260*850*1080mm | |
| Total weight | 150kg | 220kg | |
Our Commitment to Certified Quality and Safety
We don’t just say our products are high-quality; we prove it. Our factory and products go through strict tests to meet global standards. These certifications show you’re buying something safe, reliable, and built to last.
CE Certified: Your Safety Guarantee
The CE mark proves the RISELASER RL-F series (1500W/2000W/3000W) Handheld Fiber Laser Welder meets tough safety, health, and environmental rules in the European Economic Area (EEA). Every part and safety feature is carefully checked. This means the welder is designed to protect the user and keep safety as a top priority.
ISO 9001 Certified: Quality You Can Trust
Our ISO 9001 certification shows we follow a world-class quality system. It covers everything from design and development to making and supporting the product. This ensures every machine is made with care and meets high-quality standards. You can count on getting a reliable and consistent welder every time.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Product Shipping
1: If you have a freight forwarder in China, we will ship the product directly to their location.
2: If you have customs clearance experience, we can help you connect with a freight forwarder.
3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQs
If I want to become your distributor, can I get a discounted price?
Absolutely, we offer more favorable pricing for our distributors.
Does the handheld laser welding machine pose any harm to the human body?
Our handheld laser welding machine is completely safe for the human body and also environmentally friendly.
What materials and thicknesses can the Riselaser RL-F series weld?
The Riselaser RL-F series (1500W, 2000W, 3000W) handheld laser welder can weld many types of metals. These include stainless steel, carbon steel, galvanized steel, aluminum, brass, and copper. The maximum thickness it can weld depends on the model and the metal. For example, the 3000W model can weld stainless steel and carbon steel up to 7mm thick. It can handle aluminum and galvanized steel up to 6mm thick. Thinner metals like brass and copper have lower thickness limits. This makes the RL-F series very flexible for different metal projects.
How easy is it to learn and operate the Riselaser RL-F handheld laser welder?
The RL-F series is simple to learn and use. Traditional welding can take years to master. With this machine, operators can get skilled in just a few hours. It has a smart head with a screen that lets you adjust settings easily. The anti-jam wire feeder delivers wire smoothly every time. This makes it great for beginners but also trusted by experts. It helps cut down training time and boosts your team’s productivity fast.
