Product Application

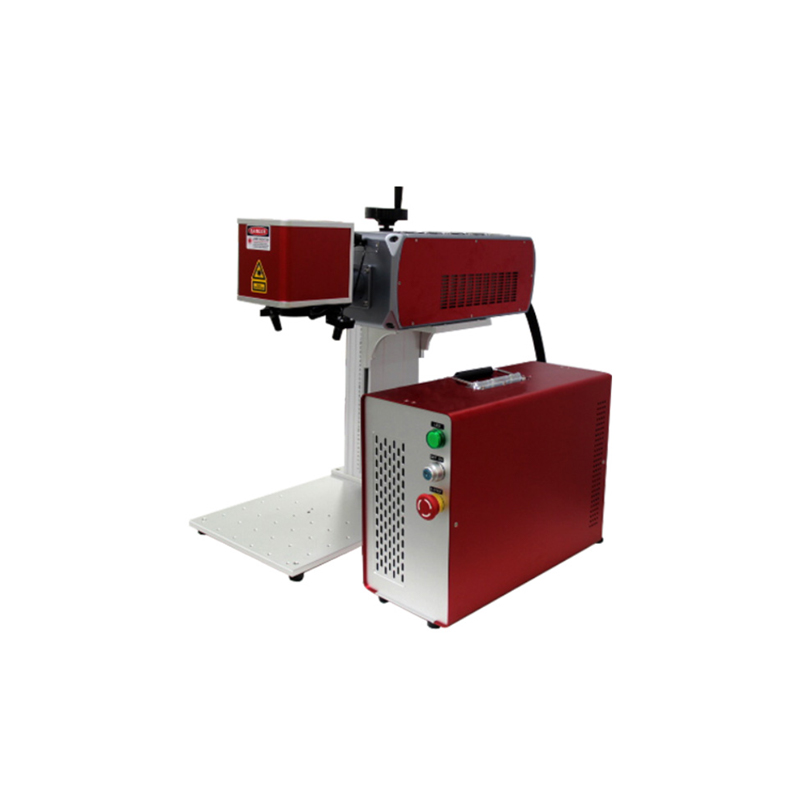

The RL-20C mini CO2 laser marking machine is very light in size and weight, making it highly flexible and portable for any workplace. Small but powerful, it is suitable for marking a wide range of non-metallic materials such as paper, plastic, ceramic, glass and leather. The markings are clear and permanent, hard to wear and tear, helping to customize products and prevent forgery. Marking can be done on any regular or irregular surface without mechanical damage to the material.Fast marking speed and less consumables in a single molding, can reduce production costs.
Service
Pre-Sales Service
After receiving your inquiry, we will promptly send you detailed product information and patiently address your questions.
If you’d like to see the machine in action, we can arrange a video conference to demonstrate its specific operations for you.
Additionally, we will recommend suitable machines based on the information you provide and customize specific appearances to meet your needs.
After-Sales Service
We offer online operation guidance, and if you require further assistance, we can visit your location to provide free on-site training.
In the event of any damage during transportation,we will send you a replacement machine at no charge.
Additionally,any issues with our machines that arise within two years, provided they are not due to intentional damage will be covered by us.
Machine Configuration
LIFT HANDLE
High quality stable adjustableup and down material markersof different heights.
CONTROL BUTTONH
umanized control system, simpleoperation, safe and convenient,dust-proof design.
HIGH SPEED GALVANOMETER
The marking speed is fast andthe precision is high.
FIELD LENS
Standard 110 x 110 mm marking
area.Optional 150x150mm,200x200mm,300x300mm,etc.
LASER BEAM
Perfect laser beam/ long life service.
RED LIGHT POSITIONING
Find the focal length quickly without using a ruler andjust see if the red dot and red line overlap on thesurface of the product to be marked.
COLUMN
Adjustable height ruler standardmaximum height: 54 cm.
WORKBENCH
Aluminium workbench. Flat and stable,
compact structure, adjustable processingdirection, flexible control.
Product Structure
Product Parameters
| Working Accuracy | ±0.01mm |
| Graphic Format Supported | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP |
| Laser Type | CO2 |
| Cooling Mode | Air Cooling |
| Condition | New |
| Place of Origin | Guangdong,China |
| Laser Source Brand | RAYCUS |
| Weight (KG) | 50 KG |
| Key Selling Points | High-accuracy |
| Warranty | 1 Year |
| Marking Area | 110mm*110mm |
| Mode of Operation | Pulsed |
| Configuration | bench-top |
| Feature | Air-cooled |
| Application | Laser Marking |
| CNC or Not | Yes |
| Brand Name | Riselaser |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Product Name | CO2 Laser Marking Machine |
| Laser source | IPG Raycus Max JPT |
| After-sales Service Provided | Online Support |
| Applicable Material | Non-metal Materials |
| Keywords | Co2 Laser Marking Printer |
| Marking material | Wooden Plastic Fabric Glass Leather |
| Machine type | C02 Laser Machine |
| Marketing Type | Hot Product 2022 |
| Function | Marking Logo Non Metal |
| Laser Power | 20W/30w/50w/100w(Optional) |
Product Features
- High stability: using well-known brand accessories, product quality is guaranteed, and machine performance is stable;
- High efficiency: good laser beam quality, high conversion efficiency, high processing efficiency;
- Convenience: easy-to-use marking software interface, simple to understand;
- Customizable: There are various models to choose from.
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
Q1: Do you provide after-sales service?
A1:The mini portable fiber laser marking machine has one year warranty and provides door-to-door service.
Q2:How long is the delivery time?
A2:Ordinary machines will be delivered in 3-7 days, and customized machines will take 12-14 days.
Q3:Do you support customization?
A3:Yes, we will make customized service for you according to the different marking materials and thickness.
Q4:I don’t know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A4:We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
