Product Description
The Raytools Auto Focus Laser Cutting Head is a high-performance, intelligent laser cutting head designed for industrial laser cutting applications. With its innovative auto-focus technology and efficient cooling system, it delivers exceptional performance and extended durability for cutting a wide range of materials.
Ideal for industries such as automotive, aerospace, electronics, and metal fabrication, the Raytools Auto Focus Laser Cutting Head is perfect for cutting, engraving, and welding applications.
Product Features
Intelligent Cooling System: A unique cooling structure designed to cool both the collimation and focus modules, as well as the nozzle. This effectively protects the nozzle and ceramic components, extending their lifespan.
Contamination Prevention: Equipped with 4 cover glasses to significantly reduce contamination risks during fiber and cover glass replacement, while also prolonging the life of the collimation and focus lenses.
Auto-Focus Technology: Achieves higher speed and a wider auto-focus range by moving the collimation lens, ensuring precision and efficiency in cutting operations.
Real-Time Temperature Monitoring: Monitor the temperature of the bottom cover glass in real-time via a mobile app or computer desktop. Overheating alarms protect the optical path system effectively.
Sealed Integrated Design: An improved fiber interface (QBH, QD, G5) enhances compatibility with various lasers and prevents leaks and rust, ensuring long-term reliability.
Why Choose Riselaser Raytools Laser Cutting Head？
Precision: Advanced auto-focus technology ensures high accuracy and consistency.
Durability: Robust cooling and contamination prevention systems extend the lifespan of critical components.
Convenience: Real-time monitoring and user-friendly interfaces simplify operation and maintenance.
Compatibility: Designed to work seamlessly with a wide range of laser systems.

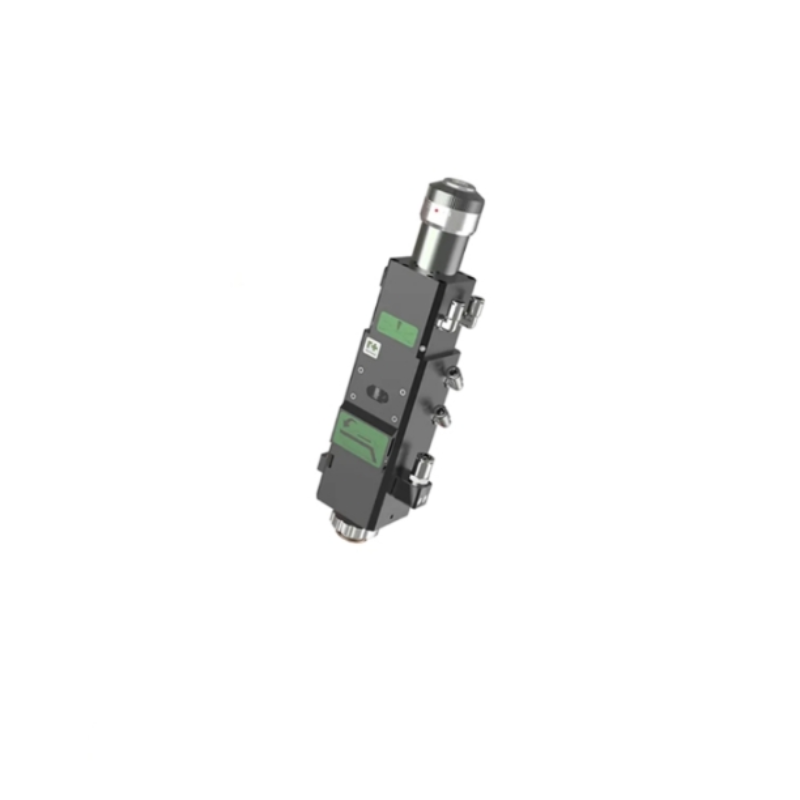

Product Display
Laser Cutting Head Parameters
| Parameter | Details |
|---|---|
| Fiber Interface | QBH, QD, G5 |
| Numerical Aperture (NA) | 0.13 |
| Auto Focus | |
| – Range | -35 ~ +25 mm |
| – Acceleration | ≤ 10 m/s² |
| – Velocity | ≤ 200 m/min |
| – Accuracy | ≤ 10 μm |
| Cover Glasses | |
| – Collimation Side (Top) | Φ24.9 * 1.5 mm |
| – Focusing Side (Bottom/Middle) | Φ37 * 7 mm |
| Collimation Length | 100 mm |
| Focus Length | 150 mm, 200 mm |
| Nozzle Styles | Single, Double, Boost |
| Diameter of Nozzle Tip | |
| – Single | 1.2 – 5.0 mm |
| – Double | 1.0 – 1.8 mm |
| – Boost | 1.6 – 7.0 mm |
| Assist Gas Pressure | ≤ 30 bar |
| Weight | ~ 7.5 kg |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
1. What is the advantage of the auto-focus feature in the Raytools Laser Cutting Head?
The auto-focus feature allows the collimation lens to move automatically, enabling faster adjustments and a wider focus range. This ensures precise cutting across different material thicknesses and improves overall efficiency.
2. How does the cooling system protect the laser cutting head?
The intelligent cooling system effectively cools the collimation module, focus module, and nozzle, preventing overheating and extending the lifespan of critical components like the nozzle and ceramic parts.
3. Can I monitor the temperature of the cutting head remotely?
Yes, the Raytools Laser Cutting Head supports real-time temperature monitoring of the bottom cover glass. You can access this data via a mobile app or computer desktop, and the system will trigger an alarm in case of overheating to protect the optical path.
