Product Application
Handheld pulse laser cleaning machine is widely used in various fields due to their efficiency, environmental friendliness, and non-contact nature. Key application areas include:
-
Industrial Manufacturing: Used to remove oxidation, welding residues, and oil from metal surfaces, enhancing product quality.
-
Automotive Industry: Cleans engine components, car bodies, and parts to ensure clean surfaces for painting and welding.
-
Shipbuilding: Removes rust, coatings, and dirt from hulls and equipment, prolonging the lifespan of vessels.
-
Construction Industry: Cleans concrete surfaces, bricks, and metal structures, restoring their original appearance and improving construction quality.
-
Aerospace: Cleans aircraft components to remove grease and contaminants, ensuring safety and performance.
-
Cultural Heritage Preservation: Used for cleaning artifacts and ancient buildings, protecting their integrity and aesthetics.
-
Electronics Industry: Eliminates solder residues and other contaminants from circuit boards, ensuring the reliability of electronic components.
-
Medical Devices: Cleans medical instruments to ensure they are contaminant-free and meet hygiene standards.
Laser cleaning machines are gradually replacing traditional cleaning methods, driving technological advancement and environmental progress across various industries.
Machine Configuration
LASER SOURCE
stable, efficient, Basically maintenance free. Good experience and low cost.
COOLING AIR INLET
Uniquely designed portable detachable dust net, better air intake, dustproof and dirt-proof, easy to disassemble and maintain.
HIDDEN STORAGE
The compact design maximizes the storage of accessories.
TOUCH SCREEN
Touch screen, easy to operate, can be configured with various Parameters and control sreal-time laser.
USE POWER DIRECTLY
Universal 220v power supply, plug and play.
ENVIRONMENTALLY FRIENDLY
Most environmentally friendly friendly industrial cleaning method, portable dust removal assist.
CONTROLLING SOFTWARE
1. There are more than 20 mainstream languages to choose from.
2. Important parameters such as laser power, pulse width, and light output frequency can be adjusted.
3. six cleaning shapes: solid circle, solid rectange, hollow circle, hollow rectangle, 8 shape, line shape.
HANDHELD CLEANING HEAD
1. Field lenses of different sizes can be replaced, and a variety of cleaning areas can be selected.
2.The ultra-mini portable cleaning head weighs only 0.5KG.
3. Replaceable auto focus cleaning head integrated in automation.
LASER SOURCE
stable, efficient, Basically maintenance free. Good experience and low cost.
COOLING AIR INLET
Uniquely designed portable detachable dust net, better air intake, dustproof and dirt-proof, easy to disassemble and maintain.
CONTROLLING SOFTWARE
1. There are more than 20 mainstream languages to choose from.
2. Important parameters such as laser power, pulse width, and light output frequency can be adjusted.
3. six cleaning shapes: solid circle, solid rectange, hollow circle, hollow rectangle, 8 shape, line shape.
HIDDEN STORAGE
The compact design maximizes the storage of accessories.
TOUCH SCREEN
Touch screen, easy to operate, can be configured with various Parameters and controlsreal-time laser.
HANDHELD CLEANING HEAD
1. Field lenses of different sizes can be replaced, and a variety of cleaning areas can be selected.
2.The ultra-mini portable cleaning head weighs only 0.5KG.
3. Replaceable auto focus cleaning head integrated in automation.
USE POWER DIRECTLY
Universal 220v power supply, plug and play.
ENVIRONMENTALLY FRIENDLY
Most environmentally friendly friendly industrial cleaning method, portable dust removal assist.
Product vieo
Product advantage
1. Portable design: compact structure, wearable, ergonomic, single person operation.
2. High efficiency cleaning: laser cleaning has high efficiency and saves time.
3. Non contact: laser cleaning without grinding and non-contact.
4. No pollution: it can easily solve the environmental pollution caused by chemical cleaning without using any chemical agent and cleaning solution.
5. Strong expansibility: replaceable field mirror, changing focal depth, wider laser cleaning format.
Product Parameters
| Max average power(W) | 100 | 200 |
| Output central wavelength(nm) | 1064±5 | 1064±5 |
| Beam quality(M2) | ≤1.6 | ≤1.8 |
| Power adjustment range(%) | 10-100 | 10-100 |
| Output power instability(%) | ≤5 | ≤5 |
| Pulse repetition rate(kHz) | 20-400 | 20-2000 |
| Pulse length(ns) | 10/20/30/60/100/200/250/350 Optional | 10/30/60/240 Optional |
| Max pulse energy(mJ) | 1 | 1 |
| Fibre length(m) | 3 | 3/5 |
| Laser safety classification | 4 | 4 |
| Cooling method | Air-cooled | Air-cooled |

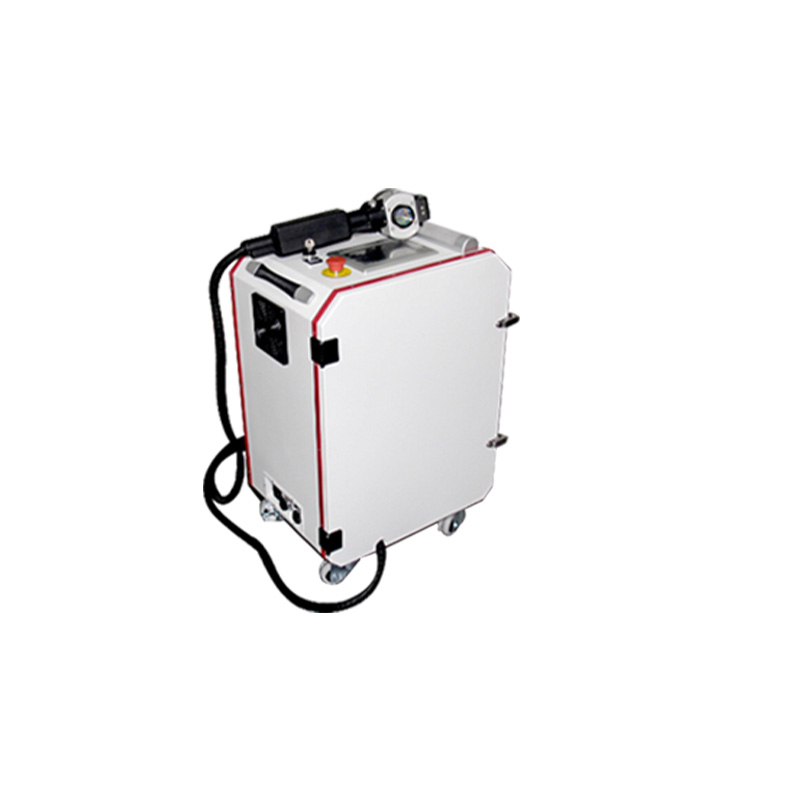

Product view
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
Product packaging
FAQ
Q1: Do you provide after-sales service?
A1:The handheld pulse laser cleaning machine has one year warranty and provides door-to-door service.
Q2:How long is the delivery time?
A2:Ordinary machines will be delivered in 3-7 days, and customized machines will take 12-14 days.
Q3:Do you support customization?
A3:Yes, we will make customized service for you according to the different cutting materials and thickness.
Q4:I don’t know how to use it after receiving it, or I have problems in the process of using it. What should I do?
A4:We have a detailed user manual and video materials, you can learn. In addition, we provide door-to-door service.
