Product Applications
Fiber Mold Laser Welding Machine can be used to weld a variety of metal materials, such as aluminum alloy, stainless steel, steel, copper and so on. With high welding precision and outstanding efficiency, the machine is not only suitable for repairing various types of molds, but also can easily complete the tasks that traditional hand-held welding is not capable of.
Product Video
Product advantage
1.The laser spot through the fiber becomes more uniform and stable, improving the quality of the weld. The laser beam can be obtained as very small after focusing. Light spot, high power density, and can be accurate positioning, the mold repair is particularly optimized, more targeted, better effect.
2.Special chiller, can meet the long time, high power welding stability is better.
3.Gas protection system, make the product is always protected by argon in the welding process, maintain the product quality and improve the welding quality.
4.3D boom, help you solve the problem of large mold repair, without moving the mold, the joystick control pan table (200mm 300mm
Automatic translation table) to move. Easy to achieve laser repair large mold, large mold tools, long life and high precision.
5.Special welding control system, extremely high stability, LCD touch screen is easy to control, easy to learn, easy to understand.
6.Strong scalability, can be combined with the assembly line, photoelectric detector, pneumatic clamps and other devices for automatic processing.
Product Parameters
| unit type | Fiber Mold Laser Welding Machine |
| Maximum laser power | 1500W |
| Laser type | Fiber lasers,a conventional QBH terminal |
| laser wave length | 1080±10 nm |
| motor pattern | Continuous,pulse |
| Maximum modulation | 25 H z(customizable) |
| Laser welding depth | 3.0 mm(depending material) |
| Fiber core diameter | 50 μm |
| Optical fiber line length | >8 m |
| Divide the way | Precision energy splitting or high-speed time separation |
| Out of the light mode | QCW/PWM/CW |
| Aim positioning system | microscope |
| power rating | 5.6 KW |
| Refrigeration method | Water cooling (double temperature and double control) |
| Electricity demand | 220V±10%50Hz/40A |
| Host size/net weight | L 960×W 550×H 680mm /120 KG |
| Bench size/net weight | L 610×W 410×H 580mm / 55 KG |
| Arm size / net weight | L 1600×W 1070×H 1680mm / 120 KG |

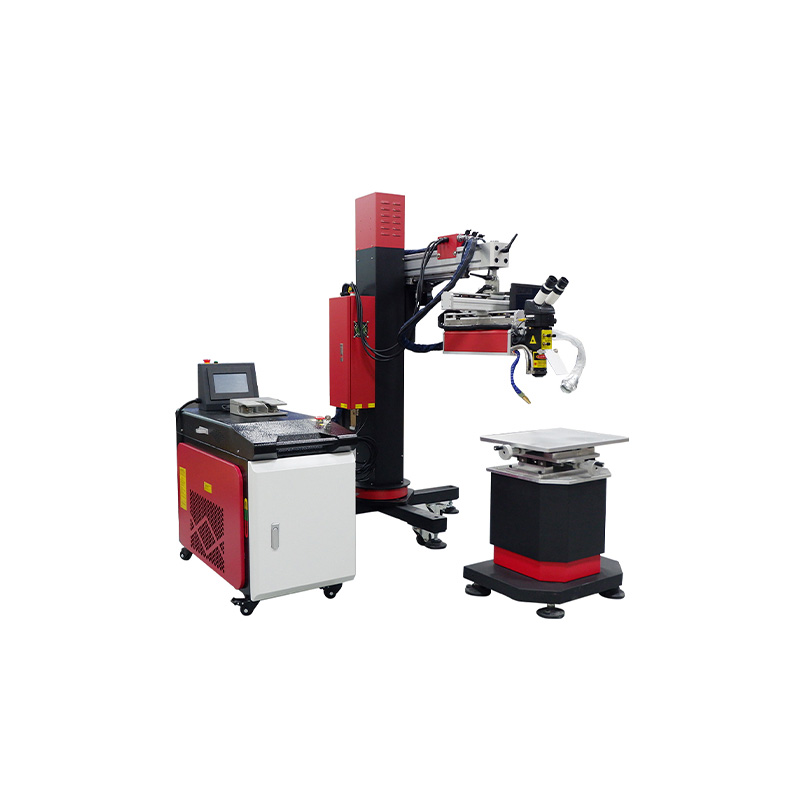

Product view
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
1.Are you a factory or a trading company ?
We are a manufacturer established in 2015, located in Shenzhen. Committed to providing the majority of users with economic, high-quality laser equipment and we provide perfect OEM and after-sale service. Welcome to visit our factory.
2.How was the machine guarantee?
We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.
3.How do you control your quality?
Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
