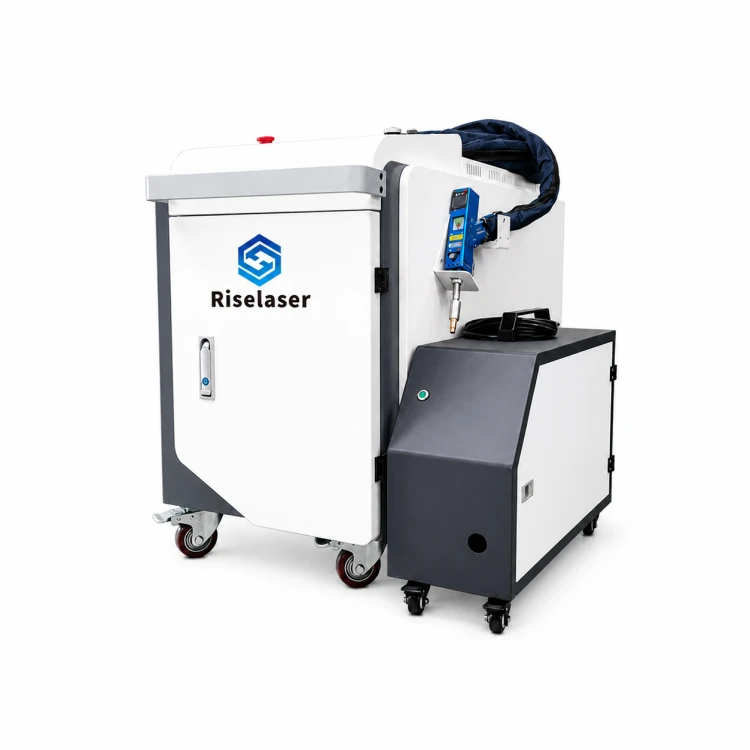

Handheld Fiber Laser Welding Machine Overview
The RL-FW is a continuous fiber laser welding machine built for metal fabrication workshops, stainless steel product manufacturers, hardware factories, cabinet makers, and sheet metal processing companies.
The handheld welding head makes it easy to weld different part shapes, including flat sheets, corners, frames, tubes, and irregular metal structures. Operators can adjust welding parameters through the control system, making the machine easier to use for different materials and welding requirements.
If you are not sure which laser power is suitable, you can send us your welding material, thickness, seam type, and daily working time. Our team will recommend a suitable configuration based on your real application.
Welding Samples
Laser welding Stainless steel
Laser welding aluminum
Laser welding Carbon steel
Laser welding copper
Key Advantages of the RL-FW Handheld Laser Welder
The smart internal design and interactive control system help improve welding stability and part tolerance. Operators can adjust welding width and key parameters to create a smoother and more consistent weld seam.
The unique optical path design includes a rotatable protective lens holder. It allows the lens position to be adjusted multiple times, helping extend lens life and reduce daily consumable cost.
Operators can adjust laser power, red light position, welding width, and frequency directly from the control screen. This makes parameter setting faster and more convenient during daily welding work.
Handheld laser welding can produce a clean and smooth weld seam with high welding speed. In many stainless steel and sheet metal applications, it helps reduce deformation, welding marks, and post-polishing work.
The wire feeding function supports easy wire output and retraction. It helps operators fill wider gaps and improve weld strength when the workpiece fit-up is not perfect.
Product Details and Key Components
Laser Welding Head
The handheld laser welding head is lightweight and easy to operate. Its optical path design and protective lens structure help improve welding stability and reduce daily maintenance cost.
Control System
The user-friendly control system allows operators to adjust laser power, wobble width, wire feeding settings, and delay parameters. It helps match different materials and welding requirements more easily.
Laser Source
The machine can be equipped with stable fiber laser sources such as MAX, Raycus, JPT, or BWT according to the required configuration. Stable laser output helps improve welding consistency and long-term performance.
Water Cooling System
The built-in water cooling system helps control the working temperature of the laser source and welding system. It supports stable operation during long working hours.
Dust-Proof Air Inlet
The detachable dust-proof air inlet helps keep the machine cabinet clean and supports easier daily maintenance. It is designed for workshop environments where dust and metal particles may be present.
Welding Parameter Control
Operators can adjust key welding parameters such as laser power, wobble width, wire feeding, light-off delay, and gas delay. This makes the machine easier to adapt to different metals and weld seam requirements.
Product Parameters
| Specification | RL-F1500 | RL-F2000 | RL-F3000 |
|---|---|---|---|
| Output Power | 1500W | 2000W | 3000W |
| Laser Wavelength | 1080 nm | ||
| Operating Mode | Continuous / Modulation | ||
| Swing Width | 0–3.5 mm | 0–4 mm | 0–5 mm |
| Welding Gun Interface Type | QBH | ||
| Oscillation Frequency | 1–30 Hz | ||
| Cooling Method | Water Cooling | ||
| Operating Voltage | 220V | ||
| Dimensions | 105 × 50 × 75 cm | 105 × 50 × 75 cm | 126 × 70 × 108 cm |
| Total Weight | 155 kg | 155 kg | 220 kg |
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
Product packaging
FAQs
What materials can the RL-FW handheld fiber laser welding machine weld?
The RL-FW handheld fiber laser welding machine can weld stainless steel, carbon steel, galvanized sheet, aluminum, copper, and other metal materials. The final welding result depends on the material type, thickness, surface condition, and welding parameters.
How do I choose between 1500W, 2000W, and 3000W?
The right laser power depends on your material thickness, welding speed, and production needs. A 1500W handheld laser welder is suitable for common thin sheet metal welding. A 2000W model is better for higher speed and thicker materials. A 3000W model is recommended for heavier welding work and high-volume production.
Can this handheld laser welder weld aluminum?
Yes, the machine can weld aluminum. However, aluminum is more reflective and heat-conductive than stainless steel or carbon steel, so the correct laser power, welding parameters, and operator setup are important. Please send us your aluminum thickness and application before choosing the machine.
Do I need a wire feeder for laser welding?
A wire feeder is recommended when the welding gap is larger or when the weld seam needs more filling material. For tight and well-fitted joints, wire feeding may not be necessary. We can help you decide based on your workpiece and welding requirement.
Is handheld laser welding faster than TIG or MIG welding?
In many stainless steel and sheet metal applications, handheld laser welding is faster than traditional TIG or MIG welding. It can also create a cleaner weld seam with less heat distortion and less polishing after welding.
What are the main consumables of a handheld laser welding machine?
Common consumables include protective lenses, nozzles, copper tips, shielding gas, and welding wire if wire feeding is used. The actual replacement frequency depends on working time, material condition, welding parameters, and daily maintenance.
Is the RL-FW handheld laser welding machine easy to operate?
Yes, the machine uses a handheld welding head and a user-friendly control system. Operators can adjust laser power, welding width, wire feeding settings, and delay parameters on the screen. Basic training and laser safety protection are still required before operation.
What safety protection is needed for handheld laser welding?
Operators should wear proper laser safety glasses, gloves, and protective clothing. The working area should have good shielding, warning signs, and controlled access. Laser welding should not be used in an open area without proper safety protection.
Can you help me choose the right machine configuration?
Yes. Please send us your welding material, material thickness, welding seam type, daily working hours, and photos or videos of your workpiece. Our team can recommend a suitable laser power, wire feeder option, and welding configuration.
Do you provide shipping support?
Yes. We can ship the machine to your freight forwarder in China. We can also help check door-to-door shipping options if you need delivery to your country. Please send us your address or nearest port for shipping cost checking.
