Product Description

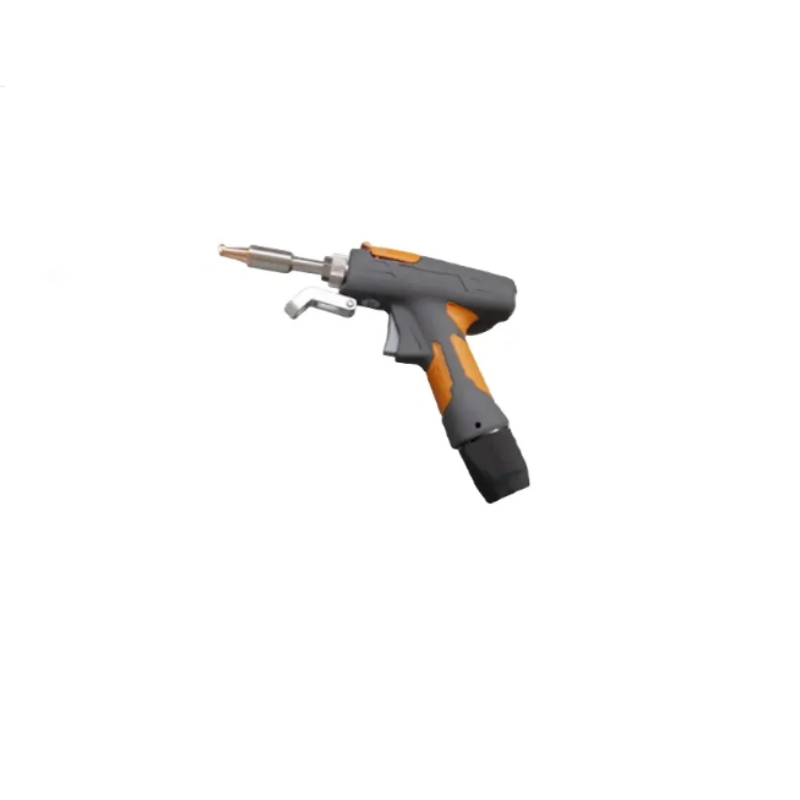

gunThe RL-SUP 20S Handheld Fiber Laser Welding Head is a high-precision accessory designed to enhance your laser welding system. Compatible with most fiber laser machines, this welding head offers exceptional performance for welding stainless steel, aluminum, copper, and other metals. Its lightweight, ergonomic design ensures ease of use, while advanced laser technology delivers clean, strong, and precise welds. Whether you’re in automotive repair, jewelry making, or metal fabrication, this laser welding gun is the perfect addition to your laser welding setup.
Product Features
Compatible with Most Laser Systems: Easily integrates with existing fiber laser machines.
High-Precision Welding: Delivers clean, strong, and precise welds for various materials.
Lightweight & Ergonomic: Easy to handle and maneuver, reducing operator fatigue.
Durable Construction: Built to withstand rigorous industrial use with minimal maintenance.
Easy to Install: Simple setup process with user-friendly instructions.
Machine Configuration
Highly compact design
Highly compact welding gun with mini size, cover 3000w laser power, easily to change optical lens
3 in 1 fiber laser welding gun
Easy solution for laser clean, welding, cutting and cleaning 3 in 1
Product Parameters
Supply Voltage (V) | 220士10% V AC 50/60Hz |
Place the environment | Flat, no vibration and shock |
Operating ambient temperature(°C) | 10~40 |
Working environment humidity(%) | <70 |
Cooling method | Water |
Applicable wavelength | 1064nm ( +10nm) |
Applicable power | ≤2000W |
collimation | D20*5/F60 |
focus | D20*4.5/F150 |
reflection | 30*14 T2 |
Protective glass specifications | 18*2 |
Maximum support air pressure | 10 bar |
Focus vertically adjusts the range | Taxi 10mm |
Spot adjustment range | Line 0-5 mm |
weight | SUP 20S 0.8 kg |
Product Size
Product Shipping
Scenario 1: If you have a freight forwarder in China, we will ship the product directly to their location.
Scenario 2: If you have customs clearance experience, we can help you connect with a freight forwarder.
Scenario 3: If you lack customs clearance experience, we offer DDP service, allowing us to find a professional forwarder to deliver the product straight to your door.
FAQ
Q: Is the RL-SUP 20S fiber laser welding head compatible with my existing laser machine?
A: Yes, it is designed to be compatible with most fiber laser systems.
Q: How do I install the laser welding head?
A: The installation process is simple and comes with user-friendly instructions.
Q: What materials can the RL-SUP laser welding gun weld?
A: It can weld stainless steel, aluminum, copper, and other metals.
