Desktop UV marking for leather, glass and plastics

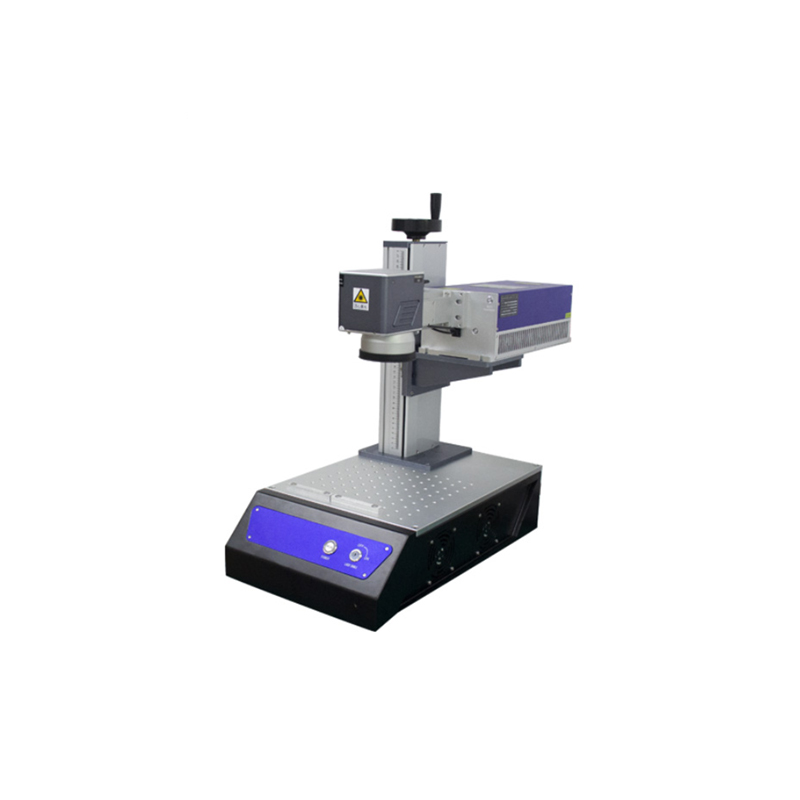

The Riselaser RL-UVG is a desktop UV laser marking machine available in 3W and 5W versions. It uses a 355 nm laser to mark text and graphics on leather, glass and plastics, with a standard marking area of 110 × 110 mm.
The air-cooled machine measures 549 × 320 × 668 mm and connects to an external computer via USB. A manual handwheel adjusts the marking head height for focusing. Marking software and a user manual are included; customers normally supply their own computer.
For glass cups and other cylindrical items, an optional rotary attachment supports marking around the circumference. This attachment is purchased separately.
Features of the RL-UVG desktop UV laser marker
Air cooling
Both the 3W and 5W versions use air cooling, so an external water chiller is not required.
Manual height adjustment
The handwheel raises or lowers the marking head to set the focus for different workpieces. The column has a specified vertical travel of 400 mm; usable workpiece height depends on the lens and setup.
Computer-based marking control
Connect your own computer through the supplied USB cable to prepare text and graphics and adjust marking settings. Marking software and a user manual are included, with online training available.
Optional rotary attachment
A rotary attachment is available at an additional cost for marking around glass cups and other cylindrical workpieces. Include this option when requesting a quotation if your products need circumferential marking.
UV Laser Marking Machine Applications
Leather marking
Mark text and graphics on leather for branding and decorative designs. Check the marking appearance on a sample of your leather before batch production.
Glass marking
Apply text and patterns to flat glass and glass cups. For designs that extend around a cup, a rotary attachment is available as a paid option.
Plastic products and packaging
Mark text, graphics, production dates and batch numbers on plastic products and packaging for product identification and batch tracking. Share the plastic type and required marking content so we can assess suitability for your material.
Product support and warranty
Before you order
Share your material, workpiece dimensions and required marking content so we can recommend a 3W or 5W configuration. If you need to mark around glass cups or other cylindrical items, include the rotary attachment in your quotation request. It is an optional accessory charged separately.
Training and after-sales support
We provide online operation training to help you get started with the machine and marking software. A user manual is included for reference.
The RL-UVG machine has a one-year warranty, and the UV laser source has a two-year warranty. Contact us for assistance with operation or troubleshooting.
Machine Configuration
Galvo scan head
Directs the laser beam across the marking area to produce the text and graphics prepared in the software.
Field lens
Focuses the UV laser beam onto the workpiece. The standard lens provides a marking area of 110 × 110 mm.
Cooling fan
Provides airflow for heat dissipation as part of the machine’s air-cooling system.
Worktable
Supports the workpiece during marking. Mounting holes allow fixtures to be secured for positioning.
Height adjustment column
Guides the vertical movement of the marking head. The scale provides a reference when adjusting the height.
Height adjustment handwheel
Manually raises or lowers the marking head to set the focus for the workpiece.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | RL-UVG |
| Machine type | Desktop UV laser marking machine |
| Laser power options | 3W / 5W |
| Laser wavelength | 355 nm |
| Operating mode | Pulsed |
| Cooling method | Air cooling |
| Standard marking area | 110 × 110 mm |
| Pulse repetition frequency | 1–150 kHz |
| Output power | 3W version: >3W @ 30 kHz; 5W version: >5W @ 40 kHz |
| Maximum pulse energy | 3W version: 0.1 mJ @ 30 kHz; 5W version: 0.12 mJ @ 40 kHz |
| Pulse duration | 3W version: <15 ns @ 30 kHz; 5W version: <18 ns @ 40 kHz |
| Average power stability | <3% |
| Machine dimensions (L × W × H) | 549 × 320 × 668 mm |
| Focus adjustment | Manual height adjustment |
| Computer connection | USB |
| Computer | Customer-supplied; not included in the standard package |
| Rotary attachment | Optional, at additional cost |
| Machine warranty | 1 year |
| Laser source warranty | 2 years |
| Training | Online operation training |
Product Shipping
Delivery to your freight forwarder
If you have a freight forwarder in China, we can arrange delivery to their designated address.
International shipping
We can help arrange shipment to your destination. The quotation will specify the shipping cost, estimated transit time and customs clearance responsibilities.
DDP delivery
DDP delivery can be quoted where available, including import customs clearance, duties and taxes. Provide your country and postal code so we can check availability and calculate the delivery cost.
FAQs
Does the RL-UVG require a separate computer?
Yes. The machine connects to an external computer via USB. Marking software and a user manual are included, but the computer is not included in the standard package and is normally supplied by the customer.
Can it mark around a glass cup?
Yes. With the optional rotary attachment, the RL-UVG can mark text and patterns around the circumference of glass cups and other suitable cylindrical items. The rotary attachment costs extra.
Can it mark production dates and batch numbers on plastic packaging?
Yes. It can mark production dates, batch numbers, text and graphics on suitable plastic packaging. Provide the plastic type and required marking content so we can assess the application.
Does the machine need a water chiller?
No. Both the 3W and 5W versions use air cooling and do not require an external water chiller.
What training and warranty are provided?
We provide online operation training and a user manual. The machine has a one-year warranty, and the UV laser source has a two-year warranty.
