When you need to remove tough stuff like rust, paint, or even microscopic dust, how do you do it without damaging the surface underneath? This guide explains three advanced laser cleaning methods that get the job done. The main idea is simple: each method is a special tool for a specific task.
- Dry Laser Cleaning (DLC): This is the go-to tool for most common jobs, like removing rust, paint, and oil from metal, stone, and other materials.
- Wet (Steam) Laser Cleaning (SLC): This is a high-precision tool for cleaning away tiny, microscopic particles from very sensitive surfaces, like computer chips and high-tech lenses.
- Plasma-Assisted Cleaning: This is a confusing term that actually means two different things. One is a chemical process called Plasma Treatment used to help glue and coatings stick better. The other is a true laser method called Laser-Induced Plasma, which uses a shockwave for cleaning in extreme environments.
This guide will break down how each method works, what it’s good for, and help you figure out which one might be right for your project.
How Does Laser Cleaning Actually Work?
Laser cleaning is a process that uses a powerful, focused beam of light to remove unwanted layers from a surface. It works based on two simple but important principles.
The Power of Laser Ablation
At its core, laser cleaning uses a process called laser ablation. Think of it like a super-powered flashlight that instantly vaporizes gunk off a surface. The contaminant layer absorbs the light, its molecules break apart, and it turns into dust and fumes that are safely vacuumed away by a fume extractor. This happens so fast that the material underneath, called the substrate, is left perfectly clean and unharmed.
The “Ablation Threshold”: The Secret to Safe Cleaning
The real magic behind laser cleaning is the ablation threshold. Every material has a “zapping point”—a minimum amount of energy needed to vaporize it. Luckily, contaminants like rust and paint have a much lower zapping point than the metals they are on, like steel or aluminum.
The laser is set to a power level that is just strong enough to zap the rust but too weak to harm the steel. This allows for perfect, selective removal without any scrapes, scratches, or chemical damage.
Deep Dive: Dry Laser Cleaning (DLC) – The Industrial Workhorse
Dry Laser Cleaning (DLC) is the most common type of laser cleaning. It uses only the laser beam to clean the surface. It works through a combination of three things happening at once
- Thermal Expansion: The laser creates a tiny, super-fast heatwave. The rust and the metal expand at different speeds, which creates a stress that makes the brittle rust layer crack and pop off the surface.
- Laser Ablation: The contaminant layer absorbs the light and is instantly turned into dust.
- Explosive Evaporation: A microscopic bit of moisture from the air, trapped under the contaminant, instantly boils. This creates a mini-explosion that helps push the particle off the surface.
What Is Dry Laser Cleaning Used For?
Because it’s so versatile, DLC is used for many jobs across different industries.

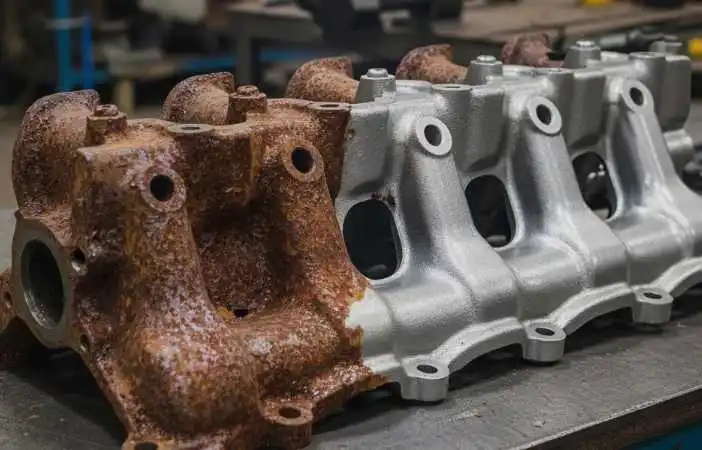

- Laser Rust Removal: Strips rust and corrosion from steel parts without grinding away the metal.
- Laser Paint Removal: Removes old paint and coatings from airplanes, cars, and equipment.
- Surface Preparation: Creates a perfectly clean surface for welding or gluing, leading to stronger and more reliable joints.
- Mold and Tool Cleaning: Removes leftover materials and release agents from industrial molds, like those used to make tires or plastic parts.
- Restoring History: Gently cleans soot and grime from old statues, stone buildings, and historical artifacts without causing damage.
Pros of Dry Laser Cleaning
- Precise and Selective: Can target tiny spots without needing to mask off surrounding areas.
- Eco-Friendly: It’s a “green” process. There are no chemicals, solvents, or messy sandblasting media to clean up.
- Low Running Costs: After buying the machine, the costs are very low because you don’t need to buy any consumables like chemicals or cleaning agents.
- Safer for Workers: Eliminates exposure to harsh chemicals, dust, and the loud noise of sandblasting.
Cons of Dry Laser Cleaning
- High Upfront Cost: The equipment is very expensive to buy compared to traditional cleaning tools.
- Risk of Damage: If you use the wrong settings (like too much power), you can accidentally damage the surface you are trying to clean.
- Material Limits: It doesn’t work well on very shiny, reflective surfaces or on soft materials like plastic and rubber that can melt.
Deep Dive: Wet (Steam) Laser Cleaning (SLC) – For Ultimate Precision
Wet Laser Cleaning (SLC), also called Steam Laser Cleaning, is a special method designed for cleaning extremely small, microscopic particles from very sensitive surfaces.
What It Is and How It Works
First, a very thin layer of a special liquid (like a water-alcohol mix) is applied to the surface. This is called the Energy Transfer Medium (ETM). The laser beam shoots through the liquid and heats the surface underneath. This causes the bottom layer of the liquid to instantly explode into steam. This powerful “vapor piston” effect blasts the tiny particles off the surface like a rocket.
What Is Wet Laser Cleaning Used For?
SLC is not for regular workshops. It’s used in ultra-clean environments like labs and high-tech factories.
- Semiconductor Manufacturing: Cleans the silicon wafers that are used to make computer chips and processors.
- High-Value Optics: Cleans lenses and mirrors for powerful laser systems or space telescopes, where even a single speck of dust could cause a major failure.
Why Choose Wet Laser Cleaning Over Dry?
For cleaning tiny particles, SLC has two big advantages:
- Less Risk of Damage: The steam explosion is very efficient, so it requires much less laser power than dry cleaning. This keeps the surface safe from any heat damage.
- Stops Dust from Resettling: With dry cleaning, tiny dust particles can float around and land back on the clean surface. The powerful blast from SLC sends particles flying far away, ensuring the surface stays perfectly clean.
Cons of Wet Laser Cleaning
- More Complicated: It requires an extra step of applying the liquid film, which has to be done just right.
- Very Niche: It is only suitable for very specific, high-tech applications.
Demystifying “Plasma Cleaning”: Two Distinct Processes
The term “plasma cleaning” is tricky because it’s used for two totally different things. It’s important to know the difference.
Method 1: Plasma Treatment (A Separate Technology)
This is a chemical process, not a laser one. It uses an energized gas, called plasma, inside a vacuum chamber to scrub surfaces and remove thin films of organic material.
- Main Use: Surface activation. It makes surfaces, like plastics, more receptive to inks, glues, and coatings so they stick better.
- Common Industries: Electronics, medical devices, and automotive manufacturing.
Method 2: Laser-Induced Plasma Cleaning (A True Laser Method)
This is a laser method. A very powerful laser pulse is fired into the air just above the surface. This creates a tiny, contained explosion of plasma. The shockwave from this plasma explosion is what physically blasts the contaminants off the surface.
- Main Use: High-force cleaning in extreme or unique environments.
- Key Application: Cleaning the inside walls of fusion reactors, where other methods can’t be used.
At-a-Glance: Which Cleaning Method is Right for You?
Use this simple table to match your cleaning problem with the best technology.
| If you need to remove… | Dry Laser Cleaning (DLC) | Wet Laser Cleaning (SLC) | Plasma Treatment |
| Thick Rust, Paint, or Coatings | Excellent | Not Recommended | Not Recommended |
| Oils, Grease, and Industrial Grime | Good | Fair | Good |
| Microscopic/Nano Particles | Fair (risk of dust resettling) | Excellent | Not Recommended |
| Thin Organic Film (for better gluing) | Not its purpose | Not its purpose | Excellent |
The Future is Smart: What’s Next for Laser Cleaning?
Laser cleaning technology is getting smarter and better all the time. The goal is to create fully automatic systems that guarantee perfect results.
- Ultrashort Pulse (USP) Lasers: These are super-fast “cold” lasers that create virtually no heat. This allows them to clean extremely delicate materials without any risk of thermal damage. They are being tested for sterilizing medical implants.
- AI and Real-Time Monitoring: The newest systems are becoming “smart.” They use sound sensors to “listen” and special cameras to “see” the cleaning process. An AI can analyze this information and automatically adjust the laser’s power, stopping the very second the contaminant is gone. This completely prevents any damage to the surface.
Final Verdict: Choosing the Right Path to a Perfect Surface
The different laser cleaning methods are a set of specialized tools, not a one-size-fits-all solution. The right choice depends entirely on your material, the contaminant, and your project goals.
- For most general-purpose jobs like removing rust, paint, and grime, Dry Laser Cleaning (DLC) is the industry standard.
- For high-tech jobs that require removing microscopic particles from sensitive surfaces, Wet (Steam) Laser Cleaning (SLC) is the best choice.
- Plasma methods are for unique tasks, like preparing surfaces for better adhesion (Plasma Treatment) or for shockwave cleaning in extreme science experiments (Laser-Induced Plasma).
While the initial cost of a laser system is high, it can save a lot of money over time by eliminating the need for chemicals and reducing waste.
Ready to see if laser cleaning is the right fit for your application? Schedule a complimentary application audit with our technical experts to analyze your parts and recommend the optimal process.
FAQs
Yes, laser cleaning is safe when the correct safety measures are in place. Operators must use special, wavelength-specific safety glasses and work in a designated, controlled area to prevent eye or skin exposure. A fume extraction system is also required to safely capture any dust or fumes created during the process.
No, not when used correctly. The laser is precisely tuned to a power level that only vaporizes the contaminant (like rust or paint) without harming the metal substrate underneath. However, using incorrect settings can cause thermal damage, which is why proper operator training is essential.
The initial equipment cost is high due to the advanced technology involved. However, it is often worth it in the long run because the operating costs are very low. Laser cleaning uses no consumables like chemicals or abrasive media, which eliminates recurring expenses for materials and hazardous waste disposal, providing a strong return on investment.
